Lab Week 03 GIS

Overview

In this short tutorial you will put pedestrian count data on a map. The goal is simple: see where people walk in Auckland CBD and how that changes throughout the day.

You do not need to memorise the code. Focus on understanding the logic of each step and interpreting the maps you produce.

Duration: approximately 30 minutes

What you need:

• Python 3.10+ with pandas, geopandas, matplotlib, folium, and mapclassify installed
• The files akl_ped-2024.csv and akl_ped-Geodata.csv

---

Step 1: Load and Clean the Data

We start by loading the pedestrian counts and doing some basic cleaning.

import pandas as pd
import geopandas as gpd
import matplotlib.pyplot as plt

# Load the pedestrian data
ped = pd.read_csv("data/akl_ped-2024.csv")

# Remove rows that are not actual data
ped = ped.dropna(subset=["Date", "Time"]).copy()
ped = ped[ped["Date"] != "Daylight Savings"].copy()

# Convert the Date column to a proper date format
ped["Date"] = pd.to_datetime(ped["Date"])

# Extract the hour number from the Time column (e.g. "7:00-7:59" becomes 7)
ped["hour"] = ped["Time"].str.split(":").str[0].astype(int)

# Extract the month number (e.g. March = 3)
ped["month"] = ped["Date"].dt.month

print(f"We have {ped.shape[0]} rows and {ped.shape[1]} columns")
ped.head(3)

We have 8783 rows and 25 columns

	Date	Time	107 Quay Street	Te Ara Tahuhu Walkway	Commerce Street West	7 Custom Street East	45 Queen Street	30 Queen Street	19 Shortland Street	2 High Street	...	8 Darby Street EW	8 Darby Street NS	261 Queen Street	297 Queen Street	150 K Road	183 K Road	188 Quay Street Lower Albert (EW)	188 Quay Street Lower Albert (NS)	hour	month
0	2024-01-01	6:00-6:59	78.0	53.0	24.0	9.0	87.0	67.0	10.0	11.0	...	8.0	22.0	75.0	77.0	15.0	68.0	53.0	115.0	6	1
1	2024-01-01	7:00-7:59	201.0	39.0	29.0	38.0	143.0	123.0	12.0	21.0	...	6.0	21.0	93.0	73.0	21.0	56.0	74.0	81.0	7	1
2	2024-01-01	8:00-8:59	644.0	55.0	50.0	52.0	243.0	291.0	62.0	23.0	...	9.0	34.0	186.0	157.0	31.0	75.0	132.0	150.0	8	1

3 rows × 25 columns

Step 2: Filter to March and Pick Eight Hours

We want to focus on March 2024 and eight time slots that capture a full day: 7 am, 9 am, 11 am, 1 pm, 3 pm, 5 pm, 7 pm, and 9 pm.

# Keep only March
march = ped[ped["month"] == 3].copy()

# The eight hours we want
target_hours = [7, 9, 11, 13, 15, 17, 19, 21]

# Filter to just those hours
march_filtered = march[march["hour"].isin(target_hours)]

print(f"March has {march.shape[0]} rows in total")
print(f"After filtering to our 8 hours: {march_filtered.shape[0]} rows")

March has 744 rows in total
After filtering to our 8 hours: 248 rows

Step 3: Calculate the Average Count per Sensor per Hour

March has 31 days, so each sensor has 31 readings for each hour. We take the mean to get a single “typical March day”.

# These are the 21 sensor columns (everything after Date and Time)
sensor_cols = ped.columns[2:23]

# Group by hour, then take the mean of each sensor column
hourly_avg = march_filtered.groupby("hour")[sensor_cols].mean()
hourly_avg = hourly_avg.round(0)

# print(hourly_avg)  # un-comment this and have a go!

Step 4: Reshape to Long Format

Right now each sensor is its own column (wide format). To put the data on a map, we need one row per sensor per hour (long format). The melt() function does this.

hourly_long = hourly_avg.reset_index().melt(
    id_vars="hour",
    var_name="Address",
    value_name="avg_count"
)

print(f"Long format: {hourly_long.shape[0]} rows")
hourly_long.head()

Long format: 168 rows

	hour	Address	avg_count
0	7	107 Quay Street	300.0
1	9	107 Quay Street	535.0
2	11	107 Quay Street	689.0
3	13	107 Quay Street	885.0
4	15	107 Quay Street	922.0

What Just Happened?

We had 8 rows (one per hour) and 21 columns (one per sensor). After melting, we have 8 x 21 = 168 rows, with each row telling us the average count for one sensor at one hour.

Step 5: Add Coordinates and Make a GeoDataFrame

The pedestrian CSV has counts but no coordinates. A separate file tells us where each sensor is located. We merge them together and convert to a GeoDataFrame.

# Load the sensor locations
geo = pd.read_csv("data/akl_ped-Geodata.csv")

# The file has some notes at the bottom; drop those
geo = geo.dropna(subset=["Latitude", "Longitude"]).copy()

print(f"We have coordinates for {len(geo)} sensors")
geo.head()

We have coordinates for 21 sensors

	Address	Latitude	Longitude
0	107 Quay Street	-36.843015	174.766494
1	188 Quay Street Lower Albert (EW)	-36.843060	174.765730
2	188 Quay Street Lower Albert (NS)	-36.843060	174.765730
3	Te Ara Tahuhu Walkway	-36.844650	174.769645
4	Commerce Street West	-36.844912	174.768065

# Merge: attach coordinates to each row of our aggregated data
merged = hourly_long.merge(geo, on="Address", how="inner")

print(f"After merging: {merged.shape[0]} rows, {merged['Address'].nunique()} sensors")
merged.head()

After merging: 168 rows, 21 sensors

	hour	Address	avg_count	Latitude	Longitude
0	7	107 Quay Street	300.0	-36.843015	174.766494
1	9	107 Quay Street	535.0	-36.843015	174.766494
2	11	107 Quay Street	689.0	-36.843015	174.766494
3	13	107 Quay Street	885.0	-36.843015	174.766494
4	15	107 Quay Street	922.0	-36.843015	174.766494

# Convert to a GeoDataFrame so we can map it
gdf = gpd.GeoDataFrame(
    merged,
    geometry=gpd.points_from_xy(merged["Longitude"], merged["Latitude"]),
    crs="EPSG:4326"
)

gdf.head()

	hour	Address	avg_count	Latitude	Longitude	geometry
0	7	107 Quay Street	300.0	-36.843015	174.766494	POINT (174.76649 -36.84302)
1	9	107 Quay Street	535.0	-36.843015	174.766494	POINT (174.76649 -36.84302)
2	11	107 Quay Street	689.0	-36.843015	174.766494	POINT (174.76649 -36.84302)
3	13	107 Quay Street	885.0	-36.843015	174.766494	POINT (174.76649 -36.84302)
4	15	107 Quay Street	922.0	-36.843015	174.766494	POINT (174.76649 -36.84302)

Step 6: Your First Web Map

Let us put the 5 pm data on an interactive web map. GeoPandas has a built-in function called .explore() that creates an interactive Leaflet map with one line of code.

# Filter to just the 5 pm hour
hour_17 = gdf[gdf["hour"] == 17]

# Create an interactive map!
hour_17.explore(
    column="avg_count",
    cmap="YlOrRd",
    tooltip=["Address", "avg_count"],
    tooltip_kwds={"aliases": ["Sensor", "Avg Count"]},
    tiles="CartoDB positron",
    marker_kwds={"radius": 10},
    legend=True,
    legend_kwds={"caption": "Avg Pedestrian Count (5 pm)"},
    style_kwds={"weight": 1, "color": "black"},
)

Make this Notebook Trusted to load map: File -> Trust Notebook

Hover over the dots to see which sensor they represent and how many pedestrians pass by. Zoom in and out to explore the CBD area.

Try a Different Basemap

Change tiles="CartoDB positron" to one of these and re-run:

• "OpenStreetMap" (shows street detail)
• "CartoDB dark_matter" (dark theme)

Which basemap makes the pedestrian data easiest to read?

Your turn: Change hour == 17 to hour == 7 to see the 7 am pattern. How does it differ from 5 pm?

Step 7: Web Map with Sized Circles

The .explore() map uses the same dot size for every sensor. We can use the folium library to draw circles whose size reflects the pedestrian count, making busy sensors visually larger.

import folium

# Create a base map centred on Auckland CBD
m = folium.Map(
    location=[-36.849, 174.765],
    zoom_start=15,
    tiles="CartoDB positron"
)

# Filter to 5 pm
hour_17 = gdf[gdf["hour"] == 17]

# Add a circle for each sensor.
# Don't worry about this loop syntax for now -- just run it!
# It goes through each sensor one at a time and places a circle on the map.
for _, row in hour_17.iterrows():
    folium.CircleMarker(
        location=[row["Latitude"], row["Longitude"]],
        radius=row["avg_count"] / 80,       # bigger count = bigger circle
        color="black",
        weight=0.5,
        fill=True,
        fill_color="red",
        fill_opacity=0.6,
        tooltip=f"{row['Address']}: {int(row['avg_count'])} avg/hr"
    ).add_to(m)

m

Make this Notebook Trusted to load map: File -> Trust Notebook

Your turn: Try mapping hour == 13 (1 pm lunchtime). Which sensors have the biggest circles? Are they the same ones as at 5 pm?

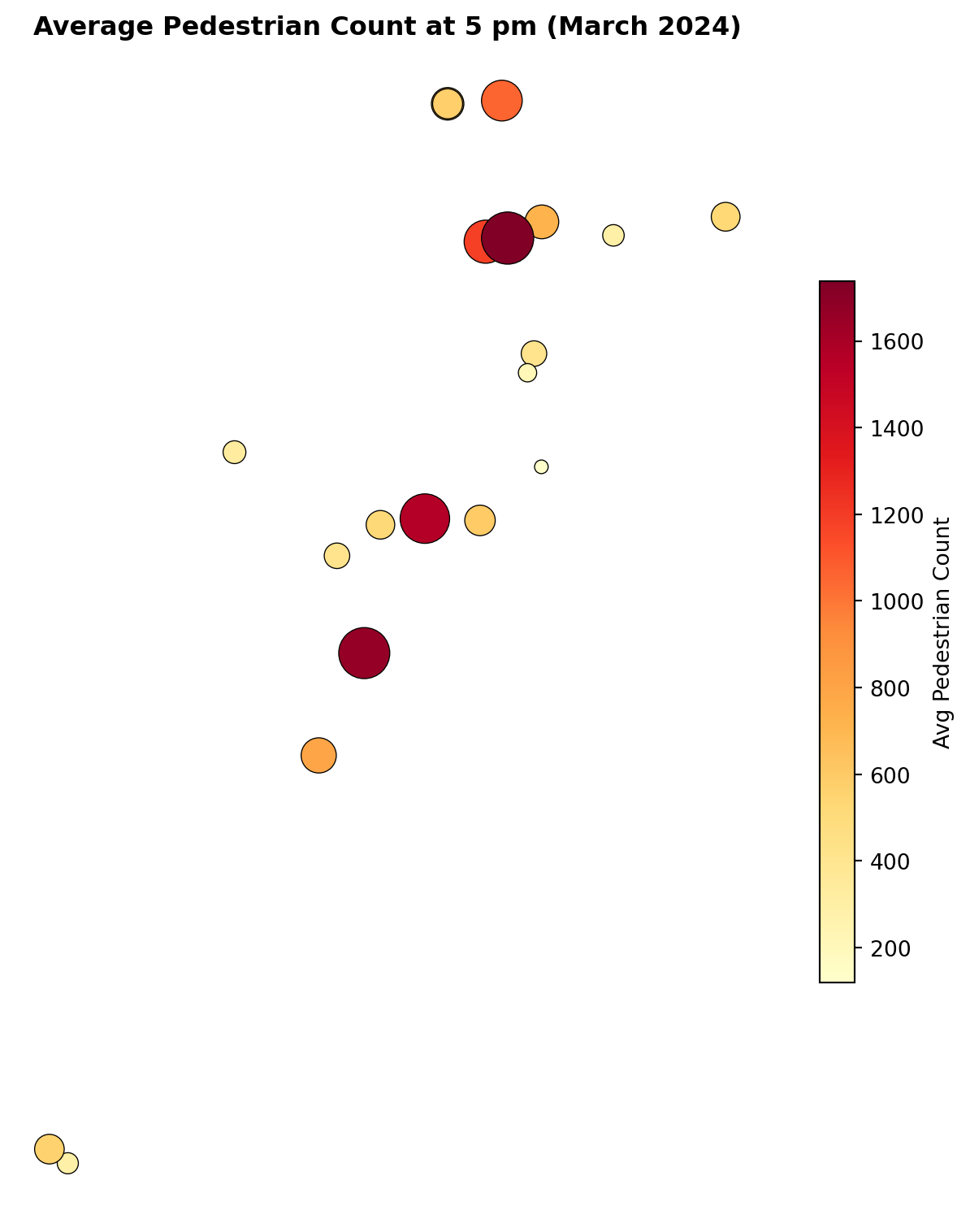

Step 8: Static Map of a Single Hour

Interactive maps are great for exploration, but static maps are better for reports and comparisons. Here is the 5 pm data as a static matplotlib plot.

hour_17 = gdf[gdf["hour"] == 17]

fig, ax = plt.subplots(figsize=(8, 8))

hour_17.plot(
    ax=ax,
    column="avg_count",
    cmap="YlOrRd",
    markersize=hour_17["avg_count"] / 3,
    edgecolor="black",
    linewidth=0.5,
    legend=True,
    legend_kwds={"label": "Avg Pedestrian Count", "shrink": 0.6}
)

ax.set_title("Average Pedestrian Count at 5 pm (March 2024)", fontweight="bold")
ax.set_axis_off()
ax.set_aspect("equal")
plt.tight_layout()
plt.show()

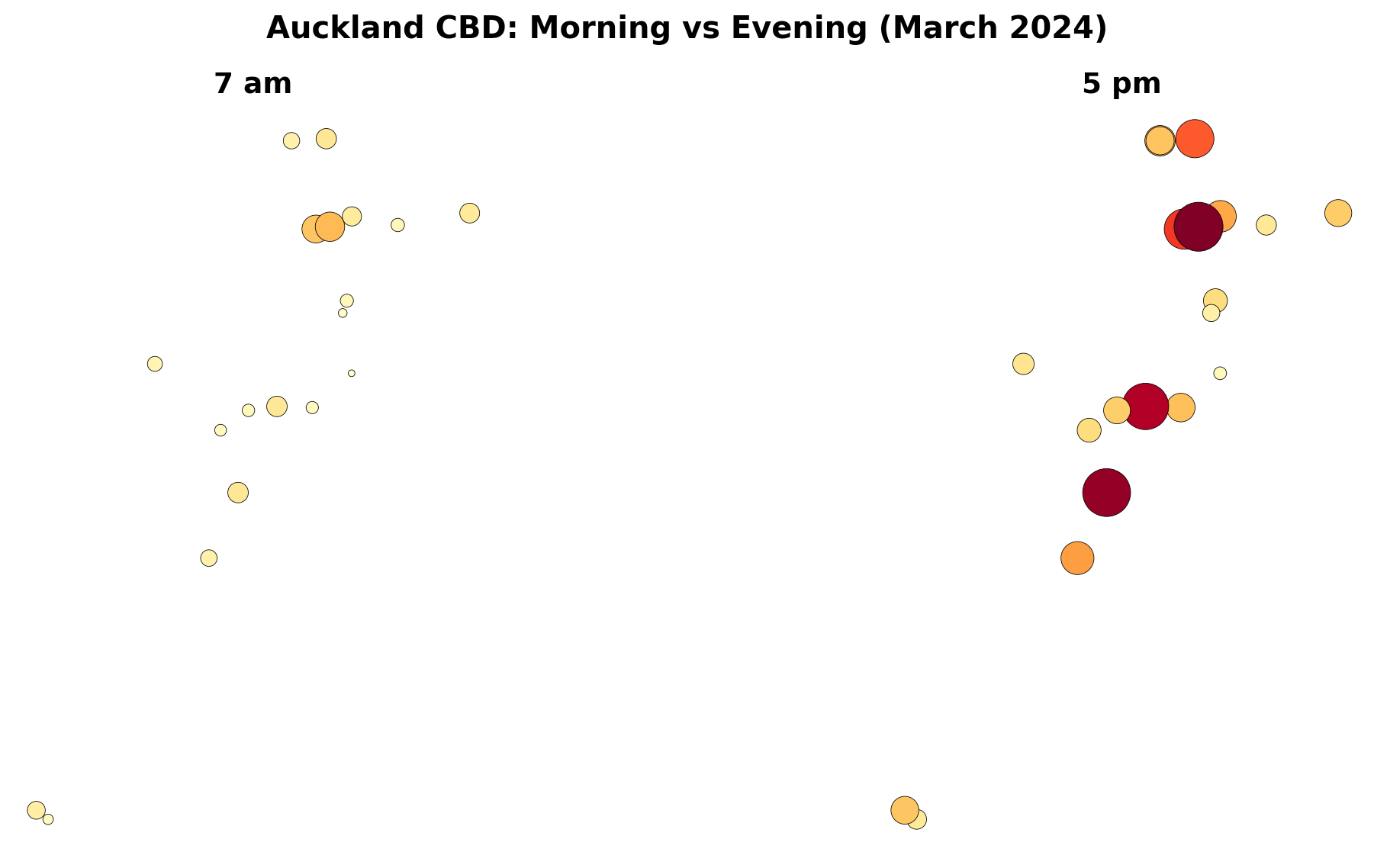

Step 9: Compare Two Hours Side by Side

A useful way to see change through the day is to place two maps next to each other.

# Pick two hours to compare
morning = gdf[gdf["hour"] == 7]
evening = gdf[gdf["hour"] == 17]

# Use a consistent colour scale so the maps are comparable
vmin = gdf["avg_count"].min()
vmax = gdf["avg_count"].max()

fig, (ax1, ax2) = plt.subplots(1, 2, figsize=(14, 6))

# Morning map
morning.plot(
    ax=ax1,
    column="avg_count",
    cmap="YlOrRd",
    markersize=morning["avg_count"] / 3,
    edgecolor="black",
    linewidth=0.3,
    vmin=vmin,
    vmax=vmax,
    legend=False
)
ax1.set_title("7 am", fontsize=14, fontweight="bold")
ax1.set_axis_off()
ax1.set_aspect("equal")

# Evening map
evening.plot(
    ax=ax2,
    column="avg_count",
    cmap="YlOrRd",
    markersize=evening["avg_count"] / 3,
    edgecolor="black",
    linewidth=0.3,
    vmin=vmin,
    vmax=vmax,
    legend=False
)
ax2.set_title("5 pm", fontsize=14, fontweight="bold")
ax2.set_axis_off()
ax2.set_aspect("equal")

plt.suptitle("Auckland CBD: Morning vs Evening (March 2024)", fontsize=15, fontweight="bold")
plt.tight_layout()
plt.show()

Your turn: Change the two hours to compare lunchtime (13) vs late evening (21). What do you notice?

Step 10: Which Sensors Are Busiest?

Let us find out which sensors see the most foot traffic overall.

# Sum each sensor's average counts across all 8 time slots
total_by_sensor = gdf.groupby("Address")["avg_count"].sum().sort_values(ascending=False)

print("Top 5 busiest sensors:")
print(total_by_sensor.head())
print()
print("Bottom 5 quietest sensors:")
print(total_by_sensor.tail())

Top 5 busiest sensors:
Address
30 Queen Street     9014.0
210 Queen Street    7855.0
261 Queen Street    7829.0
45 Queen Street     6548.0
107 Quay Street     5353.0
Name: avg_count, dtype: float64

Bottom 5 quietest sensors:
Address
Commerce Street West    1587.0
150 K Road              1516.0
2 High Street           1299.0
1 Courthouse Lane        681.0
8 Darby Street EW        660.0
Name: avg_count, dtype: float64

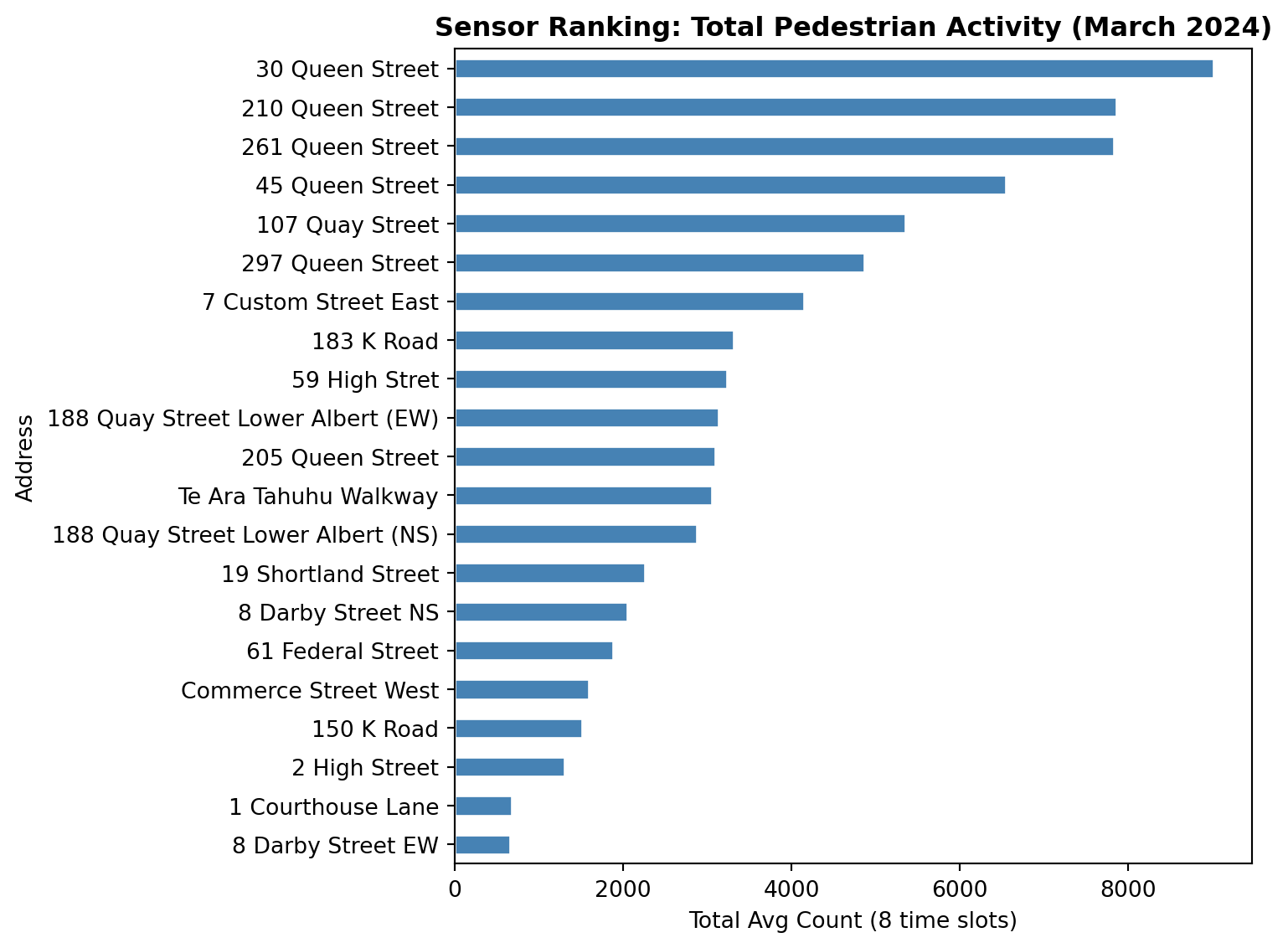

# A simple bar chart of total counts
fig, ax = plt.subplots(figsize=(8, 6))
total_by_sensor.sort_values().plot.barh(ax=ax, color="steelblue", edgecolor="white")
ax.set_xlabel("Total Avg Count (8 time slots)")
ax.set_title("Sensor Ranking: Total Pedestrian Activity (March 2024)", fontweight="bold")
plt.tight_layout()
plt.show()

---

Questions to Think About

Now that you have produced the maps, take some time to reflect on the patterns. Discuss these with your lab partner or write short answers in your notebook.

Q1: Spatial Shift Through the Day

Compare the 7 am and 5 pm maps. Does the “centre of gravity” of pedestrian activity shift location between morning and evening? In which direction, and why?

Q2: Morning vs Evening Symmetry

Are the 7 am and 7 pm maps roughly symmetrical (similar numbers but reversed in time), or do they look different? What might explain any asymmetry?

Q3: Lunchtime Hotspots

At 1 pm, which sensors show the highest counts? Are these the same sensors that dominate at 5 pm? What does this tell you about the difference between lunchtime foot traffic and commuter foot traffic?

Q4: Waterfront vs Queen Street

Compare the Quay Street sensors (waterfront) with the Queen Street sensors (retail corridor). Do they follow the same daily pattern, or do they peak at different times? What urban functions might explain the difference?

Q5: K Road vs CBD Core

The K Road sensors (150 and 183 K Road) are roughly 1.5 km south of the CBD core. How do their counts compare in absolute terms? Do they peak at the same hour as the CBD sensors?

Q6: Aggregation Choices

We averaged across all 31 days in March. How might the maps change if you:

• Used median instead of mean?
• Separated weekdays from weekends?
• Chose different hours (e.g. 8 am instead of 7 am)?

Q7: Data Limitations

The sensors only capture 21 locations. How representative are these of pedestrian activity across the entire CBD? What additional data sources might help fill the gaps?

---

Extension: Weekday vs Weekend

If you finish early, try splitting March into weekdays and weekends and comparing the maps.

# Add a day-of-week number: 0 = Monday, 6 = Sunday
march["day_num"] = march["Date"].dt.dayofweek

# Create a weekend flag
march["is_weekend"] = march["day_num"] >= 5

# Weekday average
weekday_data = march[(march["is_weekend"] == False) & (march["hour"].isin(target_hours))]
weekday_avg = weekday_data.groupby("hour")[sensor_cols].mean().round(0)

# Weekend average
weekend_data = march[(march["is_weekend"] == True) & (march["hour"].isin(target_hours))]
weekend_avg = weekend_data.groupby("hour")[sensor_cols].mean().round(0)

# Then reshape, merge with geo, and map as before...

What to Look For

Weekend maps will likely show later morning peaks, reduced lunchtime activity, and a different spatial pattern: waterfront and leisure areas gaining share while office corridors lose it.
